Parging. Structural Repair. Rebuilding. Repaired to NFPA 211 Standard Before the Next Fire.
Smoke Chamber Repair in Ocala, Gainesville, Orlando, The Villages and All Surrounding Areas.
- CSIA Certified Chimney Sweep #10020
- CCP (Certified Chimney Professional) #546
- Certified Chimney Specialist (CSIA) #59
- Certified Master Chimney Technician #34
- FL Residential Contractor #CRC133200
- FL Gas Contractor #LI45277
- Certified Chimney Re-liner #94
- Certified Chimney Journeyman #5053
Chimney Chamber Restoration
Smoke Chamber Parging. Structural Repair and Rebuilding. Smoke Shelf Cleaning. Combined Relining and Masonry Repair Scopes. Master Chimney Technician and CSIA Certified. FL Residential Contractor #CRC133200. North Central Florida Since 1982.
What the Smoke Chamber Is, Why Yours Was Flagged, and What Each Condition Means for Your Fireplace
CONDITION FOUND
WHAT IT MEANS
SAFETY CONSEQUENCE
REPAIR PATH
Unparged corbeling (no parge coat present)
Original construction left the stepped corbeled masonry surface exposed — never met NFPA 211 requirement
Combustion gases contact raw mortar joints at high temperature, depositing creosote in the masonry and allowing gases to migrate through deteriorating joints over time
Smoke chamber parging: full refractory mortar coat applied to all four walls and the smoke chamber throat to NFPA 211 smooth-surface standard
Deteriorated or cracked parge coat
An existing parge coat has cracked from thermal cycling, moisture intrusion, or age
Cracked parge coat exposes underlying masonry joints, recreating the same gas migration path that parging was installed to prevent
Smoke chamber re-parging: failed parge coat removed, surface prepared, fresh refractory coat applied
Structural crack or displaced masonry
Corbeled masonry has cracked, a brick has displaced, or a section of smoke chamber wall has failed structurally — beyond parging condition
Structural failure creates a gap in the smoke chamber wall through which combustion gases and potentially fire can pass into the surrounding framing or adjacent living space
Structural smoke chamber repair: failed masonry removed and rebuilt before parging coat is applied
Full smoke chamber failure or collapse
Smoke chamber masonry has failed to the extent that rebuilding from the smoke shelf level is required
Fireplace is not safe to use in any condition until rebuilt — smoke chamber failure at this level is a code-required repair before any fire is lit
Smoke chamber rebuild: full reconstruction from smoke shelf level up, relined and parged to NFPA 211 standard
CONDITION FOUND
Unparged corbeling (no parge coat present)
Deteriorated or cracked parge coat
Structural crack or displaced masonry
Full smoke chamber failure or collapse
WHAT IT MEANS
Original construction left the stepped corbeled masonry surface exposed — never met NFPA 211 requirement
An existing parge coat has cracked from thermal cycling, moisture intrusion, or age
Corbeled masonry has cracked, a brick has displaced, or a section of smoke chamber wall has failed structurally — beyond parging condition
Smoke chamber masonry has failed to the extent that rebuilding from the smoke shelf level is required
SAFETY CONSEQUENCE
Combustion gases contact raw mortar joints at high temperature, depositing creosote in the masonry and allowing gases to migrate through deteriorating joints over time
Cracked parge coat exposes underlying masonry joints, recreating the same gas migration path that parging was installed to prevent
Structural failure creates a gap in the smoke chamber wall through which combustion gases and potentially fire can pass into the surrounding framing or adjacent living space
Fireplace is not safe to use in any condition until rebuilt — smoke chamber failure at this level is a code-required repair before any fire is lit
REPAIR PATH
Smoke chamber parging: full refractory mortar coat applied to all four walls and the smoke chamber throat to NFPA 211 smooth-surface standard
Smoke chamber re-parging: failed parge coat removed, surface prepared, fresh refractory coat applied
Structural smoke chamber repair: failed masonry removed and rebuilt before parging coat is applied
Smoke chamber rebuild: full reconstruction from smoke shelf level up, relined and parged to NFPA 211 standard
Five Services. Parging Leads. Every Scope Confirmed by Camera Inspection Before Work Begins.
Smoke Chamber Parging
Smoke chamber parging is the application of a coat of refractory mortar to the interior surfaces of the smoke chamber: all four corbeled walls and the smoke chamber throat where the walls narrow to the flue liner opening. The refractory mortar fills the steps of the corbeled masonry and produces the continuous smooth surface required by NFPA 211. The material must be refractory-rated — it must withstand the sustained high temperatures of the smoke chamber environment without cracking. Standard masonry mortar is not an acceptable substitute and will fail within one to two fire seasons. Always Fire & Gas uses correctly specified refractory mortar for all smoke chamber parging work and does not substitute standard masonry mortar for cost reduction. The parge coat is applied in layers to the correct thickness, brought flush across the corbeling steps, and confirmed smooth by camera inspection before the project is closed.
- Smoke shelf cleared of debris and creosote accumulation before parging begins — parge coat applied to clean, prepared surface only
- Existing failed parge coat (where present) removed to stable substrate before new coat is applied — not parged over failed material
- Refractory mortar applied in layers to corbeled walls and throat to NFPA 211 smooth-surface requirement
- Parge coat thickness confirmed across all corbeling steps — no thin spots at the step transitions where cracking originates
- Camera inspection of completed surface before project is closed — before-and-after documentation provided
• Smoke chamber re-parging: failed existing parge coat removed before new application — not applied over deteriorated material
Structural Smoke Chamber Repair
Smoke chamber structural repair addresses masonry failures that are beyond the scope of parging: a corbeled brick that has displaced from its course, a crack that extends through the full thickness of the smoke chamber wall, a section of smoke chamber masonry that has spalled or fallen. Parging a structurally failed smoke chamber surface does not correct the structural failure — it covers it. The repair sequence is always structural first: failed masonry removed, new refractory-rated masonry installed in the affected section, the repaired section allowed to cure, and then the full smoke chamber parged to NFPA 211 standard. Always Fire & Gas does not parge over structural failures. If the camera inspection identifies a structural issue, the scope is adjusted to address the structure before parging begins.
- Camera inspection from firebox level confirms extent of structural damage before any demolition begins
- Failed or displaced masonry removed and replaced with refractory-rated masonry compatible with the smoke chamber temperature environment
- Repaired masonry section confirmed structurally sound before parging coat is applied over the repair
- Full smoke chamber parged to NFPA 211 standard after structural repair is complete — repair and parge are one coordinated scope
• Post-repair camera docum
Smoke Chamber Rebuilding
Smoke chamber rebuilding is required when the smoke chamber masonry has failed to the extent that repair of individual sections is not a sufficient scope: corbeling that has collapsed over multiple courses, a smoke chamber that was originally built incorrectly and has never performed correctly, or a smoke chamber where repeated overfiring or a chimney fire has caused thermal damage throughout the masonry structure. Rebuilding a smoke chamber is a firebox-level masonry project that requires removing the failed smoke chamber masonry from the smoke shelf level up, rebuilding the corbeled walls to the flue liner base, and parging the rebuilt interior to NFPA 211 standard. Always Fire & Gas performs smoke chamber rebuilding under both the Master Chimney Technician credential and FL Residential Contractor #CRC133200 — the structural masonry scope requires the contractor license, not just the chimney certification.
- Failed smoke chamber masonry removed to the smoke shelf level — debris removed from firebox and smoke shelf before rebuild begins
- Smoke shelf inspected and repaired where damaged by falling masonry or chronic moisture before new corbeling begins
- New corbeled smoke chamber walls built from refractory-rated masonry to correct dimensions and height
- Rebuilt smoke chamber parged to NFPA 211 smooth-surface standard after corbeling is complete
- Smoke chamber throat confirmed to correct dimensions for the flue liner cross-section before parging closes the throat
- Rebuild performed under #CRC133200 — permit documentation provided where required
- Camera documentation of completed rebuild and parge coat before project is closed
Smoke Shelf Cleaning and Clearing
The smoke shelf is the flat ledge at the back of the smoke chamber at damper level. It collects everything that falls down the flue: rain water, leaves, nesting material, creosote fallout, and in some cases sections of deteriorated liner tile from the flue above. A heavily loaded smoke shelf restricts the smoke chamber throat and contributes to smoke spillage during fires. Before any parging or structural repair work begins, the smoke shelf is cleared to ensure the new mortar coat is applied to a clean, unobstructed surface. Smoke shelf cleaning is also performed as a standalone scope when a chimney inspection identifies significant accumulation that is not paired with a parging finding — most commonly nesting material from uncapped flues or heavy creosote fallout from a flue that has not been swept recently.
- Smoke shelf cleared of all debris, nesting material, and loose creosote before any repair work begins
- Smoke shelf condition assessed after clearing — any cracking, spalling, or moisture damage to the shelf surface noted and included in repair scope if present
- Standalone smoke shelf cleaning available when inspection finding notes obstructed shelf without parging requirement
- Smoke shelf clearing is the first step of every parging and structural repair project — not performed as an afterthought after mortar work begins
Combined Scope: Smoke Chamber Repair as Part of Relining or Masonry Work
Smoke chamber repair rarely occurs in isolation. A flue liner that requires relining because of age or damage typically has a smoke chamber surface that should be confirmed and parged as part of the same project — closing the new liner over a non-compliant smoke chamber surface produces a code-compliant flue with a non-compliant smoke chamber, which does not satisfy the inspection requirement. A masonry chimney with deteriorated mortar joints above the roofline typically has mortar joint deterioration in the smoke chamber as well. Always Fire & Gas sequences smoke chamber repair correctly within combined scopes: smoke chamber repair and parging is completed before relining, because liner installation closes the access route to the smoke chamber throat. Calling for smoke chamber repair after the liner is installed requires pulling the liner to access the smoke chamber. We confirm the smoke chamber as the first step of any relining project.
- Smoke chamber inspection and parging performed before flue liner installation on every relining project
- Combined masonry repair and smoke chamber repair scoped together when mortar joint deterioration extends through the firebox and smoke chamber
- Smoke chamber rebuild coordinated with damper replacement or throat damper removal where the damper condition contributes to smoke chamber access
- Single mobilization for combined scopes — smoke chamber and flue system work completed in correct sequence under one project
The Repair Recommendation Comes From the Camera, Not From the Inspection Report
A home inspection report that notes the smoke chamber does not meet the NFPA 211 standard is a correct finding — but it is typically based on a flashlight view from the firebox floor, not a camera inspection of the smoke chamber interior. There is a meaningful difference between what a flashlight view from below reveals and what a camera positioned at the smoke chamber level confirms. A flashlight view can miss a crack in the rear wall, a section of failed corbeling on the upper course, or a structural displacement that changes the repair scope from parging to structural repair.
Always Fire & Gas confirms every smoke chamber finding by camera before scoping any repair. The camera is positioned at firebox level and directed up through the damper opening to inspect each wall of the smoke chamber, the throat, and the smoke shelf. The inspection confirms: whether the existing surface is unparged corbeling or a previously applied parge coat that has failed; the condition of the corbeled masonry itself independent of any surface coat; whether any structural cracks, displaced brick, or masonry failures are present; and the condition of the smoke shelf and the smoke chamber throat. The written scope and price are based on what the camera shows. If the camera confirms a parging scope, the scope is parging. If the camera identifies structural damage beyond the inspection report’s finding, the scope is adjusted and the homeowner is shown the camera footage before any change in scope is proposed.
Five Situations. One Assessment Process. Scope Confirmed Before Any Work Begins.
Your Inspection Report Notes Smoke Chamber Parging Required
The most common smoke chamber repair referral in North Central Florida. A home inspection or chimney inspection report noting that the smoke chamber does not meet the NFPA 211 smooth-surface requirement, that corbeling is exposed and deteriorated, or that parging is recommended is an accurate finding that should be addressed before the fireplace is used again. Always Fire & Gas performs a camera inspection of the smoke chamber before confirming the repair scope — the inspection report’s finding is the starting point, not the complete diagnosis. In most cases the camera confirms a parging scope and the repair is completed in a single visit. In some cases the camera identifies structural issues the inspection report did not capture, and the homeowner is shown the footage before any scope adjustment is proposed.
Call (352) 282-0158 with the inspection report. We confirm which finding applies to your smoke chamber and schedule the camera inspection and repair.
Your Fireplace Smokes Into the Room During or After Fires
An active smoking problem — smoke entering the living space during a fire, or smoke odor entering the space after the fire is out and the damper is closed — can have several causes, and the smoke chamber is one of them. Turbulence in a smoke chamber with a severely deteriorated or incorrectly shaped interior surface can disrupt the draft column at the firebox throat and contribute to smoke spillage. A smoke chamber with a structural failure or displaced masonry that creates turbulence at the throat can produce intermittent smoke entry that a damper inspection alone will not identify. Always Fire & Gas assesses the complete firebox and smoke chamber before attributing a smoking problem to any single cause. If the smoke chamber is a contributing factor, we confirm it by camera before recommending the repair.
Call (352) 282-0158 and describe the smoking pattern: during the fire, after the fire, when wind is from a specific direction, or intermittently. The pattern helps narrow the likely cause before the camera inspection confirms it. See also /chimneys/damper-repair/ for the damper assessment process and /chimneys/leaky-repair/ for draft problems from outside air pressure.
Overfiring or Chimney Fire Damage to the Smoke Chamber
A chimney fire — audible roaring in the flue, visible flame at the cap, or a chimney fire documented by the fire department — produces intense thermal shock throughout the smoke chamber masonry. Even a chimney fire that was quickly extinguished or contained may have cracked the smoke chamber corbeling or spalled sections of an existing parge coat. NFPA 211 requires a Level 2 inspection after any chimney fire before the fireplace is returned to service. Always Fire & Gas performs Level 2 camera inspections of the smoke chamber and full flue system following chimney fires and provides written documentation of findings. Smoke chamber damage from a chimney fire typically requires structural repair and re-parging, not parging alone. See /chimneys/inspections/ for the full Level 2 inspection scope.
Call (352) 282-0158 immediately after any suspected or confirmed chimney fire. Do not use the fireplace again until the smoke chamber and flue system have been inspected at Level 2. We provide written documentation suitable for insurance claims.
Fireplace Odor From the Smoke Chamber When Not in Use
A persistent musty, smoky, or creosote odor from the fireplace when it has not been used recently can indicate smoke chamber deterioration: cracked or missing parge coat that allows creosote-saturated masonry to off-gas into the firebox, or a heavily loaded smoke shelf that releases odor as temperatures rise in warm-weather months. In Florida’s climate, fireplaces that are not used regularly during the warm season can produce persistent odor from the smoke chamber through the open damper during the eight to nine months of high humidity. A camera inspection confirms whether the odor source is a deteriorated smoke chamber surface, a loaded smoke shelf, or a combination of both.
Call (352) 282-0158 and describe when the odor occurs and what it smells like. Musty or damp odor typically points to moisture in the smoke chamber masonry. Smoky or creosote odor typically points to a deteriorated surface releasing accumulated deposits. The camera inspection confirms which.
Pre-Purchase or Pre-Sale Inspection Requiring Smoke Chamber Documentation
A home sale or purchase with a wood-burning fireplace typically includes a chimney inspection as part of the due diligence process. Smoke chamber condition is a standard inspection point and a finding of non-compliance with NFPA 211 is one of the most common chimney-related items that appears in real estate transaction inspection reports. For sellers: addressing the smoke chamber finding before listing eliminates the inspection item from the buyer’s negotiation leverage. For buyers: confirming the smoke chamber condition before closing establishes the repair scope and cost before the purchase is final. Always Fire & Gas performs pre-sale and pre-purchase chimney inspections and smoke chamber assessments with written documentation throughout North Central Florida. See /chimneys/inspections/ for the full inspection scope.
Call (352) 282-0158 with your transaction timeline. We schedule the inspection and assessment to meet closing or listing deadlines and provide written documentation of findings and repair scope.
Smoke Chamber Repair Questions, Answered Directly
Smoke chamber parging is the application of a refractory mortar coat to the interior walls of the smoke chamber — the funnel-shaped cavity between the damper and the base of the flue liner. Most smoke chambers are built with corbeled masonry: brick courses that step inward from the firebox opening to the flue liner. NFPA 211 requires the smoke chamber interior to present a smooth, continuous surface with no exposed corbeling steps or open mortar joints. Parging applies a refractory mortar coat that fills the corbeling steps and produces that required smooth surface. If your inspection report says the smoke chamber does not meet the NFPA 211 smooth-surface requirement, smoke chamber parging is the repair it is describing.
Using a fireplace with an unparged or deteriorated smoke chamber is not recommended and does not comply with NFPA 211. Exposed corbeling and open mortar joints in the smoke chamber allow combustion gases to contact raw masonry at high temperature, depositing creosote in the masonry structure and providing a pathway for gases to migrate through deteriorating mortar joints into the surrounding masonry over repeated fire events. A smoke chamber with a structural failure — a cracked or displaced corbeled brick — provides a direct path for combustion gases to migrate into adjacent structure. Always Fire & Gas recommends not using the fireplace until smoke chamber repair is completed when the camera inspection identifies either an unparged surface or a structural failure.
NFPA 211 is the National Fire Protection Association’s Standard for Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appliances. Section 11.4.5 of NFPA 211 requires that smoke chamber walls be constructed or parged smooth. This means the interior of the smoke chamber must present a continuous, smooth surface without the stepped profile of exposed corbeled masonry. The requirement exists because smooth surfaces reduce turbulence in the smoke chamber, minimize creosote accumulation on the smoke chamber walls, and eliminate the open mortar joint exposure that allows combustion gas migration. When a chimney inspector notes that the smoke chamber does not meet NFPA 211, they are citing this specific requirement.
Smoke chamber parging cost in North Central Florida depends on the size of the smoke chamber, whether any existing failed parge coat must be removed before new material is applied, and whether structural repairs are required before parging. A standard single-firebox smoke chamber with no previous parging and no structural damage is the most straightforward scope. A smoke chamber with a failed parge coat that must be removed or with structural masonry damage that requires repair before parging adds to the scope and the cost. Always Fire & Gas provides a written price after the camera inspection — before any commitment is required. Call (352) 282-0158 to schedule.
Yes. Smoke chamber parging is performed from the firebox floor. The technician works through the firebox opening to access the smoke chamber above the damper, clearing the smoke shelf, preparing the corbeled surface, and applying the refractory mortar coat in layers up through the smoke chamber walls and throat. Access to the smoke chamber from the firebox level is the standard approach for parging. Camera inspection is performed from the same access point. The damper plate is typically removed or permanently fixed open during the parging process to provide unobstructed access to the smoke chamber above.

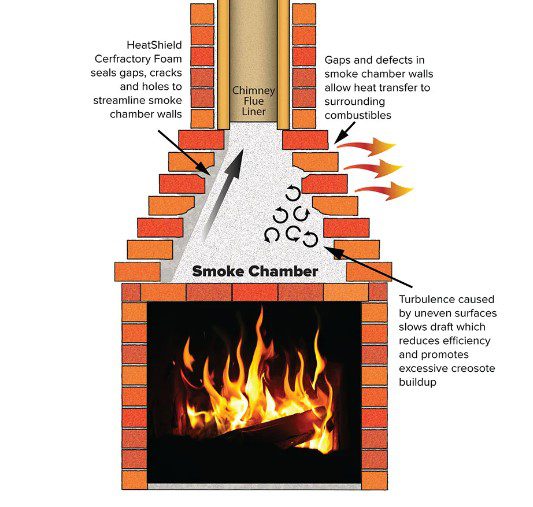

The smoke chamber is the funnel-shaped masonry cavity between the top of the firebox opening and the base of the flue liner. Its walls are the corbeled masonry that steps inward from the wider firebox opening to the narrower flue liner. The smoke shelf is the flat, horizontal ledge at the rear of the smoke chamber at the level of the damper. The smoke shelf catches debris and rainwater that falls down the flue and prevents it from landing in the firebox. The smoke chamber requires parging to NFPA 211 standard. The smoke shelf requires periodic cleaning to remove accumulated debris, nesting material, and creosote. Both components are addressed in any smoke chamber repair scope — the shelf is cleared before the parging coat is applied.
Smoke chamber repair is typically a contained scope that does not require disturbing the flue liner above or the firebox masonry below. The exception is when smoke chamber repair is performed as part of a relining project — in that case, smoke chamber parging must be completed before the liner is installed, because the liner installation closes the access route to the smoke chamber throat. Always Fire & Gas performs smoke chamber parging as the first step of any relining project for this reason. If the smoke chamber inspection identifies damage that extends into the firebox masonry below or into the base of the flue liner above, those components are scoped separately. See /chimneys/relining/ for liner replacement and /chimneys/masonry-rebuilds-repair/ for firebox masonry repair.
